xPON Transceiver

Sunstar has a very strong in-house R&D and manufacturing capabilities in xPON Transceiver field, include mass produced Combo PON OLT XFP/SFP+(N1 & N2A), XGSPON OLT & ONU,XGPON, 10G EPON. NGPON2 ONU & OLT, and 25G /100G PON are under study and development.


Product Name

Rate(G)

Wavelength(nm)

Distance(km)

Temp(Deg C)

From Factor

NGPON2 OLT (In Development)

10G/10G

Tx1596.34/1597.19/1598.04/1598.89

Up to 20km

-5~75

XFP

NGPON2 ONU  (In Development)

10G/10G

Tx1532.68/1533.47/1534.25/1535.04

Up to 20km

-5~75

XFP

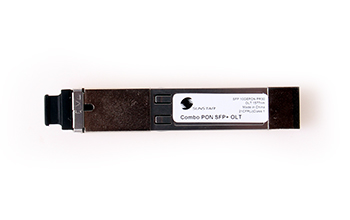

Combo OLT N1/ N2a

10G/2.5G/1.25G/2.5G

Tx1577/T1490/R1310/R1270

N1/N2,C+

-5~75

XFP,SFP+

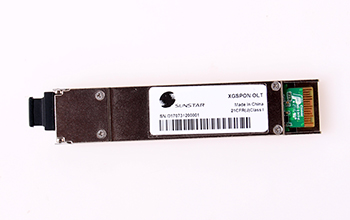

XGS-PON OLT

10G/10G

Tx1577 / Rx1270

N1/N2

-5~75

XFP

XGS-PON ONU

10G/10G

Tx1270 / Rx 1577

N1/N2

-40~85

SFP+

XGPON OLT

10G/2.5G

Tx1577 / Rx1270

N1/N2

-5~75

XFP,SFP+

XGPON ONU

2.5G/10G

Tx1270 / Rx 1577

N1/N2

-40~85

SFP+

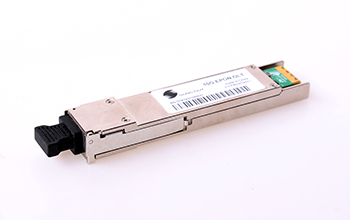

10G EPON OLT Assy

10G/1.25G/1.25G

Tx1577 / Tx 1490 / Rx1310

PRX30

-5~75

XFP

10G EPON OLT Sym

10G/1.25G/10G

Tx1577 / Tx 1490 / Rx1270

PRX30

-5~75

XFP,SFP+

10G EPON ONU Assy

1.25G/10G

Tx1310 / Rx1577

PRX30

-40~85

SFP+

10G EPON ONU Sym

10G/10G

Tx1270 / Rx 1577

PR30

-40~85

SFP+

CWDM OLT

2.5G

Tx1490/1510/1530/1590

Up to 20km

-40~85

SFP

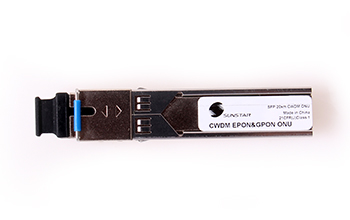

CWDM ONU

2.5G

Tx1310/R1490, T1430/R1510, Tx1450/R1530, T1470/R1590

Up to 20km

-40~85

SFP

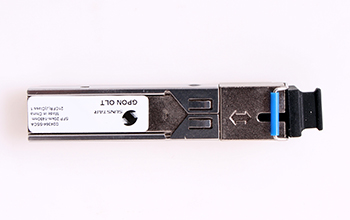

GPON OLT B+/C+/C++

2.5G/1.25G

Tx1490 / Rx1310

Up to 20km

-40~85

SFP

GPON ONU B+ (Triplexer ONU)

1.25G/2.5G

Tx1310 / Rx1490

Up to 20km

-40~85

SFP

GPON Stick ONU (Mac PON ONU)

1.25G/2.5G

Tx1310 / Rx1490

PON Stick

-40~85

SFP

RFoG PON ONU BOSA

2.5G /2.5G

Tx1270~1610/Rx 1545~1560

RFOG

-40~85

BOX

EPON OLT

1.25G/1.25G

Tx1490 / Rx1310

Up to 20km

-40~85

SFP

EPON ONU

1.25G/1.25G

Tx1310 / Rx1490

Up to 20km

-40~85

SFP
